Aahaan SGT Eagle Eye and Hawk Eye
Real time visibility enhancement for surveillance and inspection

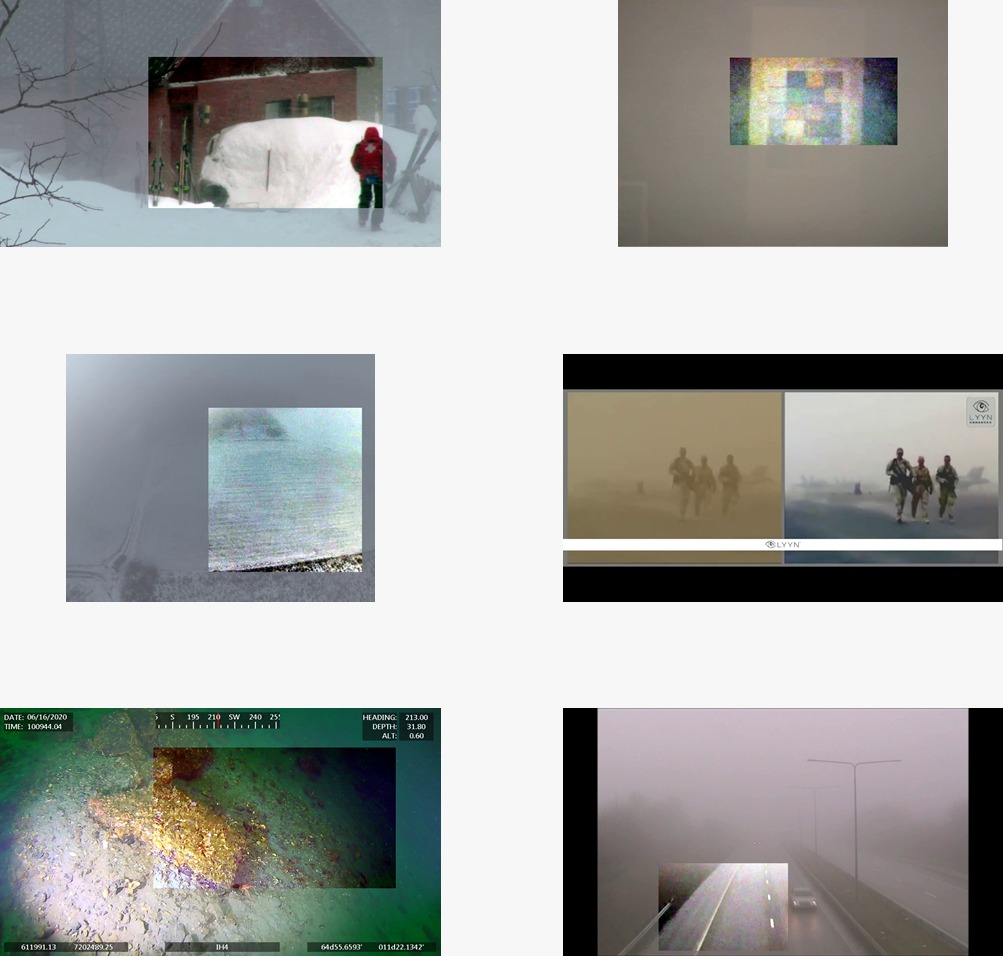

Aahaan SGT Eagle Eye and Hawk Eye bring patented video enhancement to digital HD and legacy analogue camera systems. The processing adjusts colour and luminance to make subtle scene differences easier to interpret in fog, smoke, dust, snow, low light and underwater conditions. Live feeds and recorded material can be enhanced, helping operators extract more useful visual information from compatible cameras.

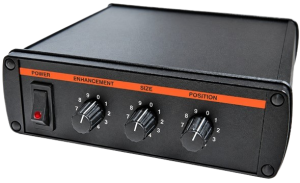

Aahaan SGT Eagle Eye
Eagle Eye supports digital SDI video, with published formats of 720p and 1080i60 over SMPTE 292 HD-SDI, and 1080p60 over SMPTE 424 3G-SDI. The hardware has a manufacturer-stated processing latency of 1 microsecond; total camera-to-display delay depends on the complete system. The portable unit uses BNC video connections and 75-ohm cabling. An integration board with MCX connections supports OEM installations. Both offer enhancement-level and viewing-window controls, with RS232 text-command remote control.

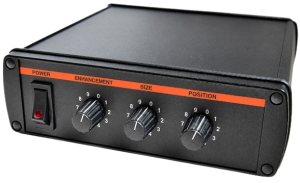

Aahaan SGT Hawk Eye
Hawk Eye provides an upgrade path for analogue colour video, supporting automatically sensed PAL 625-line at 25 fps and NTSC 525-line at 30 fps. Portable, embedded-board and 19-inch rack configurations accommodate field viewing, equipment integration and existing CCTV installations. The rack system offers single- or dual-channel processing and remote control through RS232, USB 2.0 or Ethernet. Ethernet serves control; the documented video path remains analogue. Enhancement level, window size and position remain under operator control.
Surveillance and aerial applications
These solutions can support perimeter surveillance, railway and highway observation, airport monitoring, maritime operations and industrial inspection. Retrofitting compatible viewing channels can preserve existing camera investments. AAHAAN SGT also develops civil and military unmanned platforms for inspection, observation, monitoring and surveying, with UAV services for infrastructure and agriculture. Eagle Eye processing may complement suitable drone video workflows, subject to payload, interface, power and end-to-end latency validation.
*Visibility enhancement supports human interpretation. Object detection, classification and alarms require separate analytics. Results depend on camera quality, lighting and available scene information.
